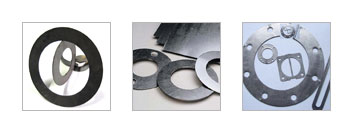

Graphite Gasket

We manufacture superior quality Graphite Gaskets to the varying requirements of our customers in Domestic as well as International markets. These Graphite moulded Rings are manufactured from 100% graphite containing no binder or fillers. Graphite Gaskets can be manufactured to any size, shape, profile as per Drawing from Sheets.

These may be from
  • Plain Flexible Graphite
  • Sheets / Gaskets with Metal insertion of SS 304 / SS 316 / GI
  • Wire Mesh in Stainless Steel / Carbon steel
  • Sheet / Foil insert
  • Tanged Sheet insert
  • Graphite tape

The Graphite Gaskets provided by us are the most resilient gaskets for flanges. These gaskets are manufactured from 100% graphite containing no binder or fillers. The Graphite Gaskets are specially designed to provide the desired compression with high percentage recovery and low creep relaxation.

Attributes
  • Can withstand high temperature
  • Pressure resistant
  • Reliable performance
  • Longer life
Specifications
  • High Temperature Resistance : -200C to 600C (+3000C in non-oxidizing areas)
  • High Pressure Resistance : Upto 1000 PSI depending on design Upto 12000PSI for metallic Gaskets
  • High Cross Section Density : 1.6 gm/mm (For Moulded Rings)
  • High Chemical Resistance : PH 0-14
